Facon 12" x 18" RV Holding Tank Heater Pad, 12Volts DC, Use with Up to 50 Gallons Fresh Water/Grey Water/Black Water Tank, Holding Tank Heating Pad with Automatic Thermostat Control
Product details
| Management number | 231089294 | Release Date | 2026/06/18 | List Price | $16.00 | Model Number | 231089294 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

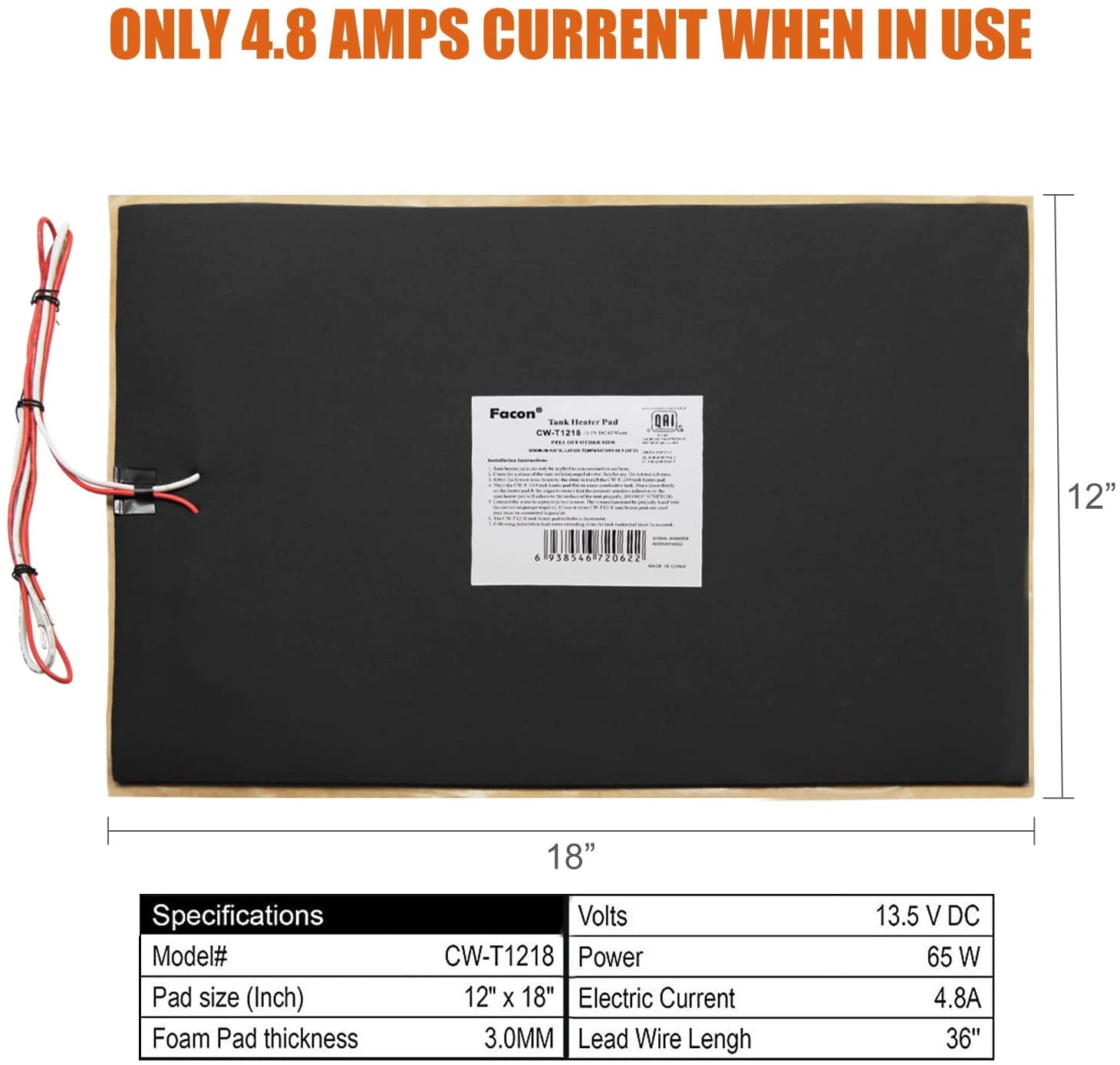

<p>Properly sized and installed Facon Heater Pads provide consistent & efficient protection as the first signs of freezing winter weather approach<br> <br> Specifications:<br> Model#CW-T1218<br> Pad size (Inch): 12'' x 18''<br> Foam Pad thickness: 3.0MM<br> Volts : 13.5 V DC<br> Power:65 W<br> Electric Current: 4.8A<br> Lead Wire Length: 36''<br> With Automatic Thermostat Control<br> Built in thermostat is set to turn itself on at 45°F( + - 5 degrees) and turn itself off at 68°F( + - 5 degrees).<br> As long as the on/off switch is in the on position and electrical power is supplied, the thermostat will continuing cycle preventing freezing.<br> Package includes:<br> 1 piece 12'' x 18'' RV Water Holding Tank Heater Pad<br> <br> <br> DON'T connect this model#CW-T1218 to 120V AC power supply.<br> <br> User's Tips:<br> 1.Do not Stretch the pad.<br> 2.Apply tank heater pads to smooth and clean surfaces.<br> 3.Identify the lowest point on the holding tank, closest to the drain.<br> 4.Clean the surface of the holding tank with isopropyl alcohol and let dry.<br> 5.Peel back the paper from the adhesive, and then press firmly and smoothly over the intended placement area.<br> 6.The model CW-T1218, requires 12V ~ 13.5V DC to operate . Don't connect this model to 120V AC power supply. Please ensure the connection to the proper voltage and the proper ''on/off''switch is used.<br> 7.The connection must be fused with correct amperage. The fuse connection please refer to drawing here. Please use 10A fuse for CW-T1218 Tank Heater pad.<br> 8. Red Wire=Positive(+). Connect to RV power wire;<br> White Wire=Negative(-). White wire can be wired to the metal frame on your RV / Camper, or if your RV / Camper has negative wire, then you can connect this end to negative wire. Please refer to drawing here.<br> 9.Please ensure after installation the lead wires are securely located and will not hang below the surface of the tank.<br> 10.If two or more heater pads are to be used they must be connected parallel.<br> 11.The model CW-T1218 works efficiently up to 40 gallon holding tanks.</p>
About this item:
- [Exclusive Technology] Facon’s world-famous Tank Heater Pads. Heater Pads are Designed and Engineered to protect RV holding tanks, pipes and steps from freezing. Winter convenience of Today’s RV’er. Provides water for RV, Camper, Trailer, Mobile home, Boat, Marine in winter. We own the Patent and Certificate for this Products. Genesis Lighting is the only manufacturer for this product.
- [Thermostat Controlled] Simply turn "ON" the power switch when the outside temperature is near to freezing. Built-in Thermostat is Set to Turn Itself on at 45°F( + - 5 degrees) and Turn Itself off at 68°F( + - 5 degrees). Turn "OFF" the switch when the outside temperature remains above freezing, fluids have been vacated, or Summer is coming, or RV is not in use. If your RV don't have individual switch for Water Tank System, please order a switch in our store.

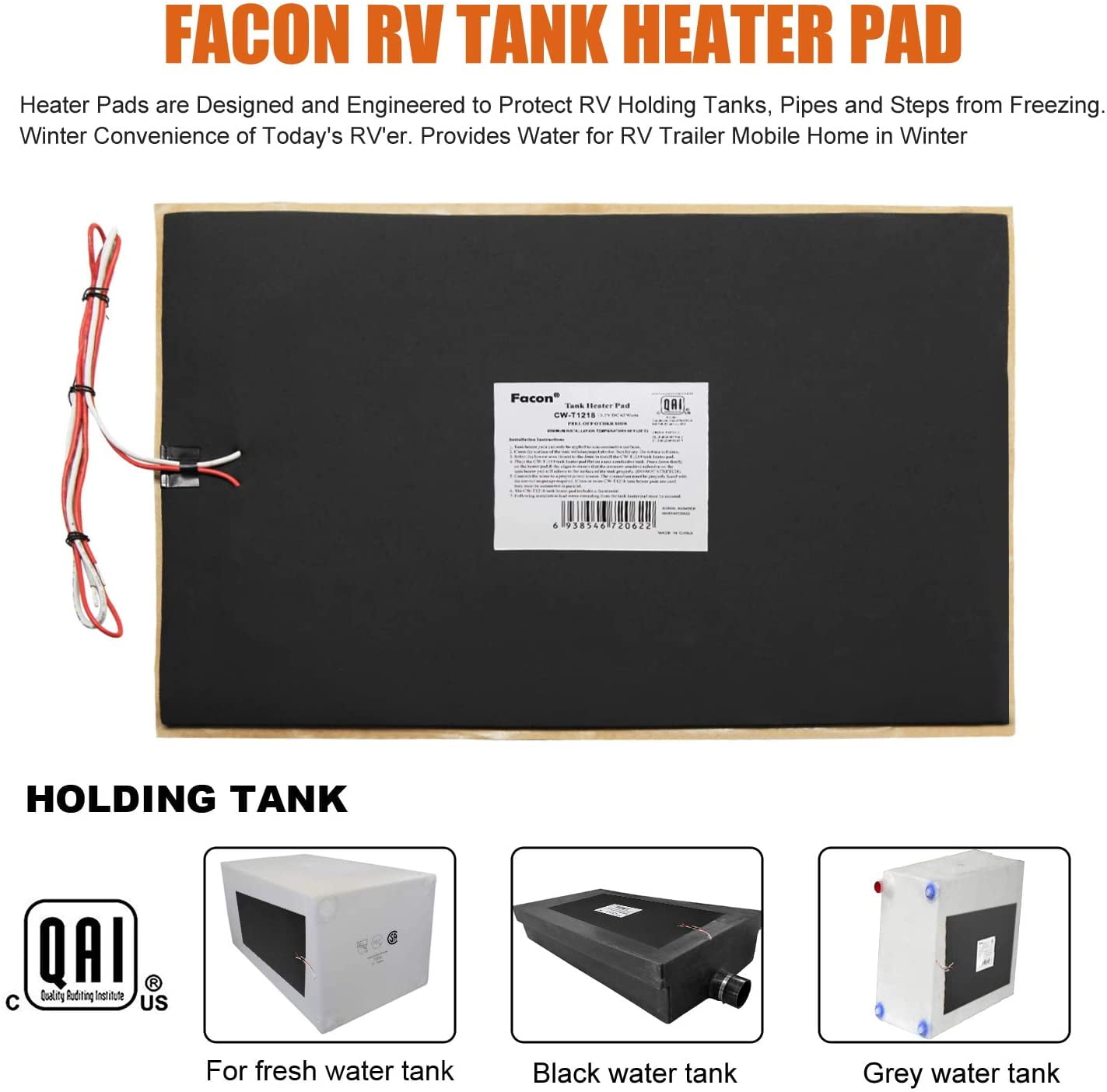

- [Application] Pad size L 12'' x W 18'' works efficiently up to 50 gallon holding tanks, such as Fresh Water Tanks, Grey Water Tanks and Black Water Tanks. Please stick 2-3 pads to your tank if it larger than 50 gallon.

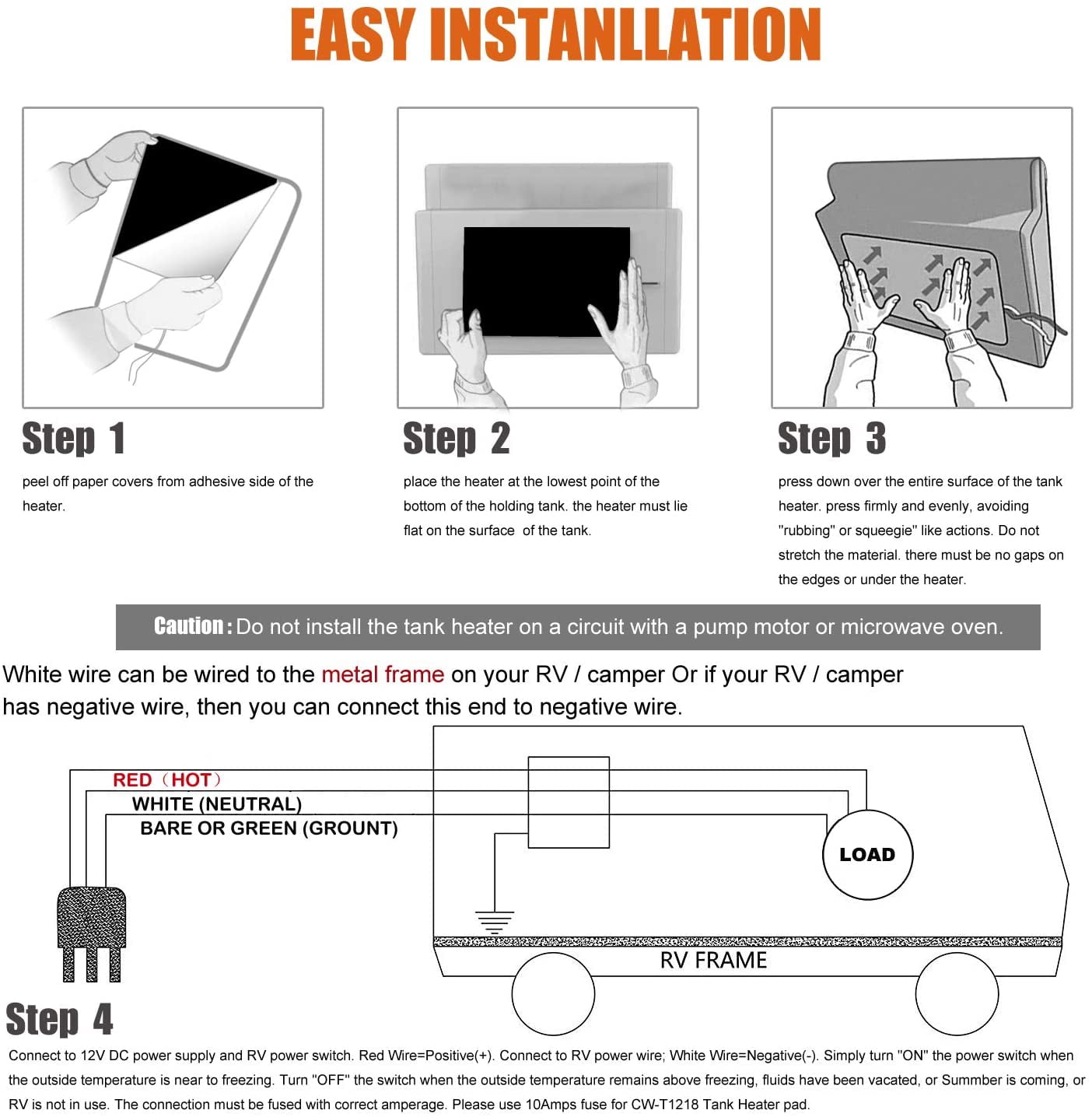

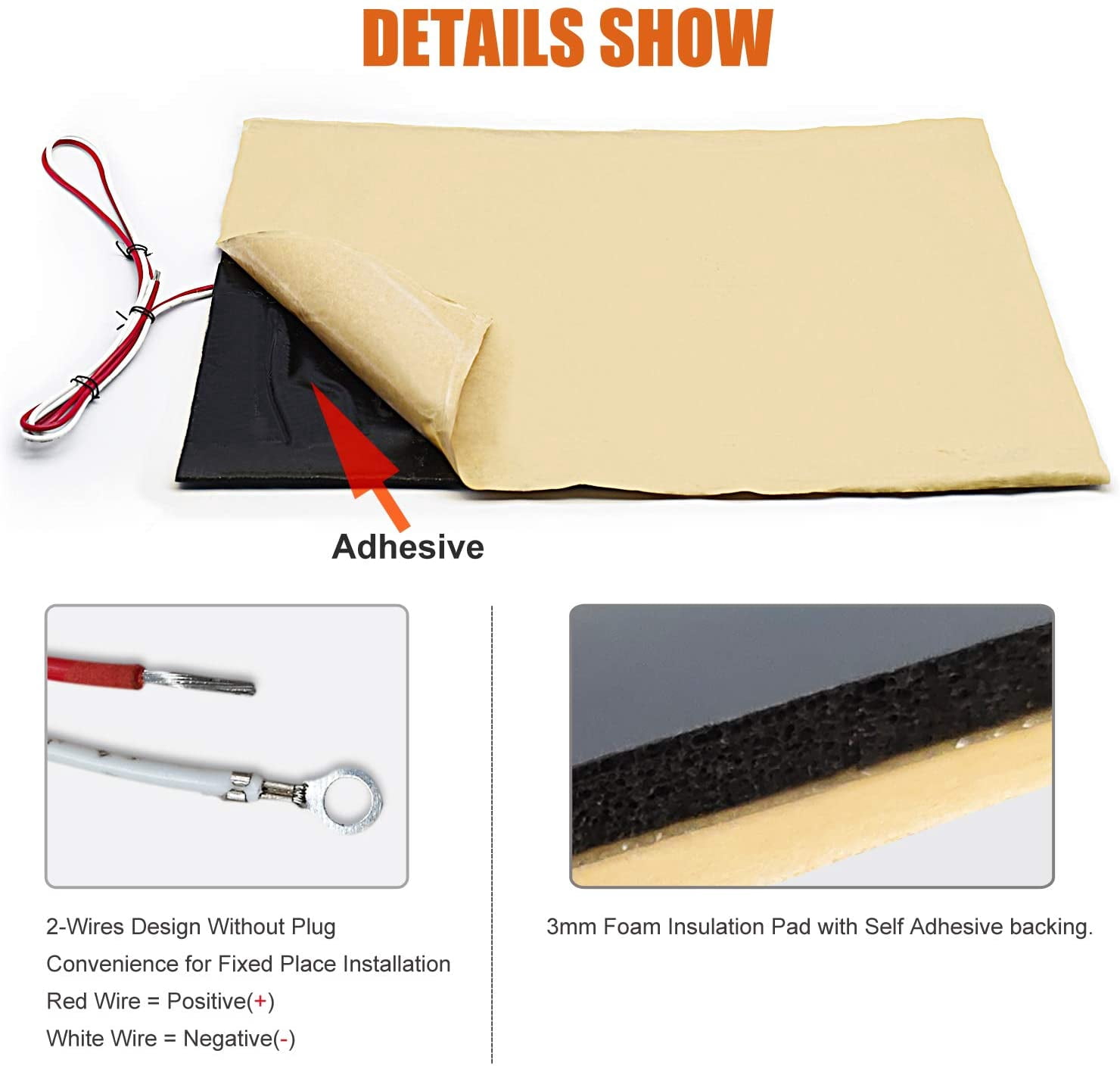

- [Easy Installation] 2-Wires Design without plug - Convenience for fixed place installation. Just wire this pad to 12Volt DC power supply and RV power switch. Red Wire=Positive (+); White Wire=Negative (-). 3mm Foam Insulation Pad with self-adhesive make it easy installation, no extra facility required. Please make sure the voltage for your RV is 12 Volts DC. Please order another size 8'' x 25'' pad in our store if you need to connect 120Volts AC Power(home voltage)
- [High Quality Warranty] Passed US Standard QAI Quality Certification. We take full Responsibility for our products and customer dissatisfaction. One Year Warranty GUARANTEE!
| Compatibility | RV, Camper, Trailer, Mobile home, Boat, Marine |
|---|---|
| Vehicle fitment type | Specific |
| Brand | Facon |
| Features | Automatic |
| Material | Foam |
| Color | Black |
| Vehicle type | Recreational Vehicle |
| Rec. use | RV |
| Count | 1 |
| Model | CW-T1218 |
| Weight | 1.3 lbs |
