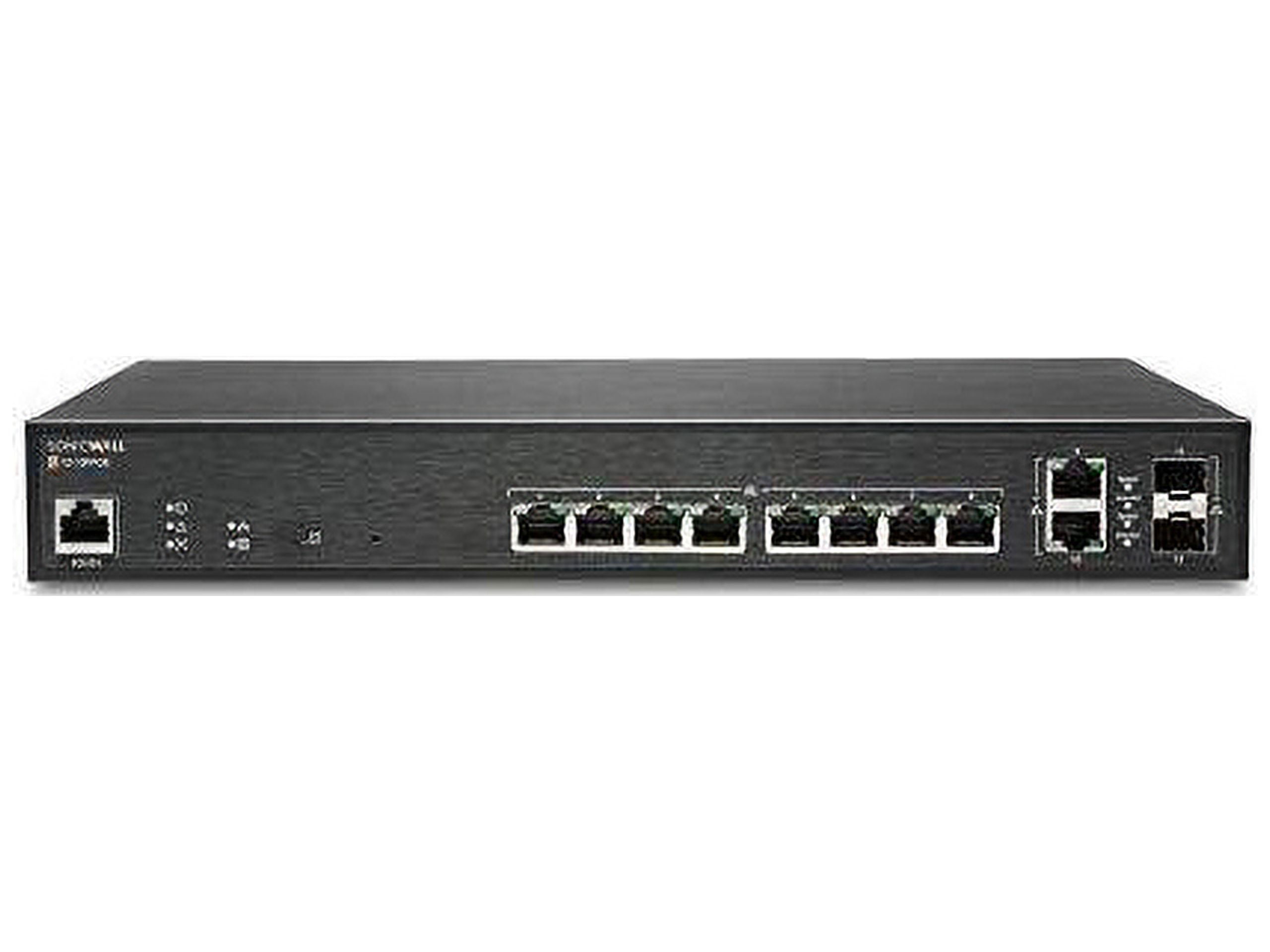

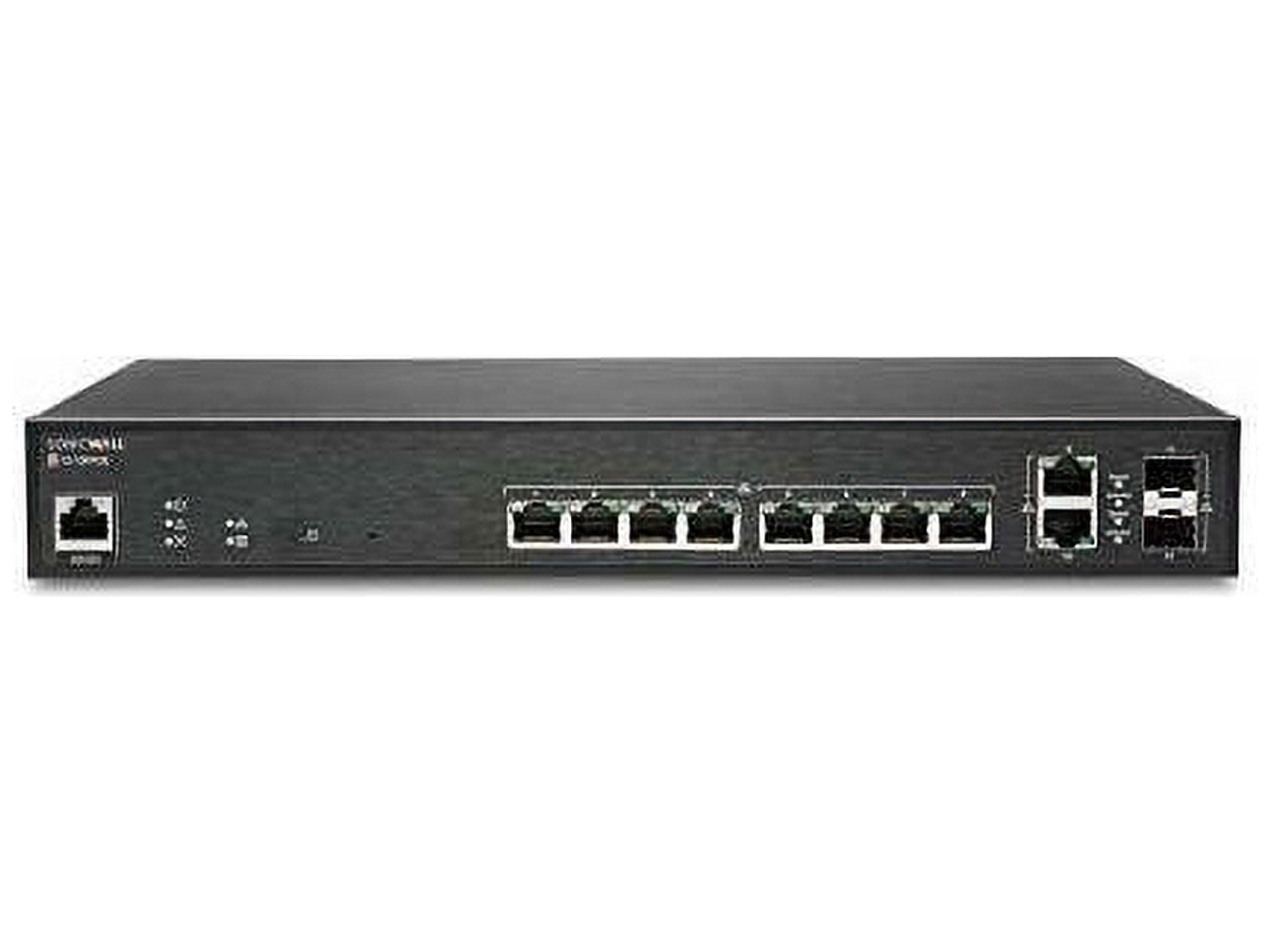

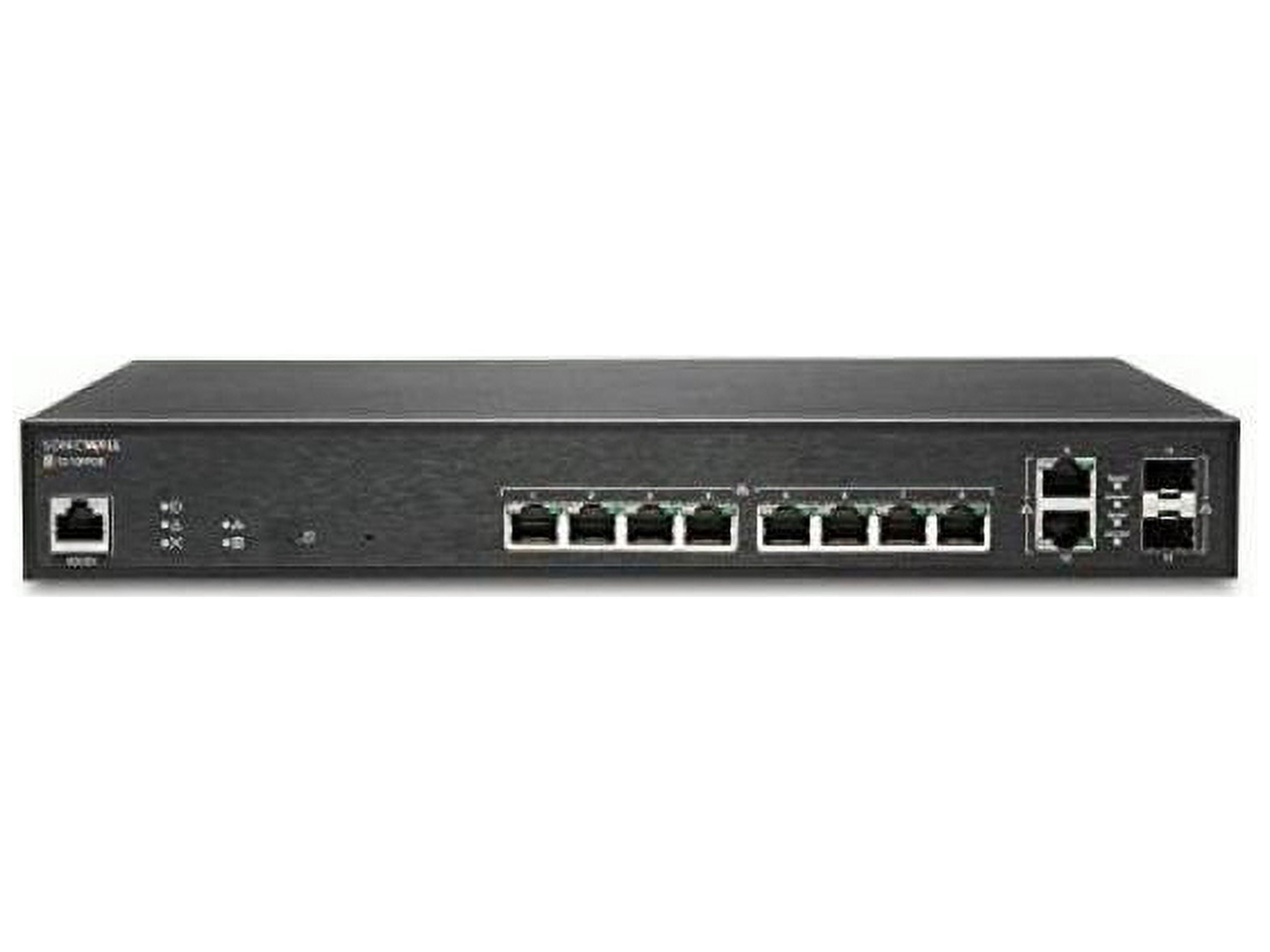

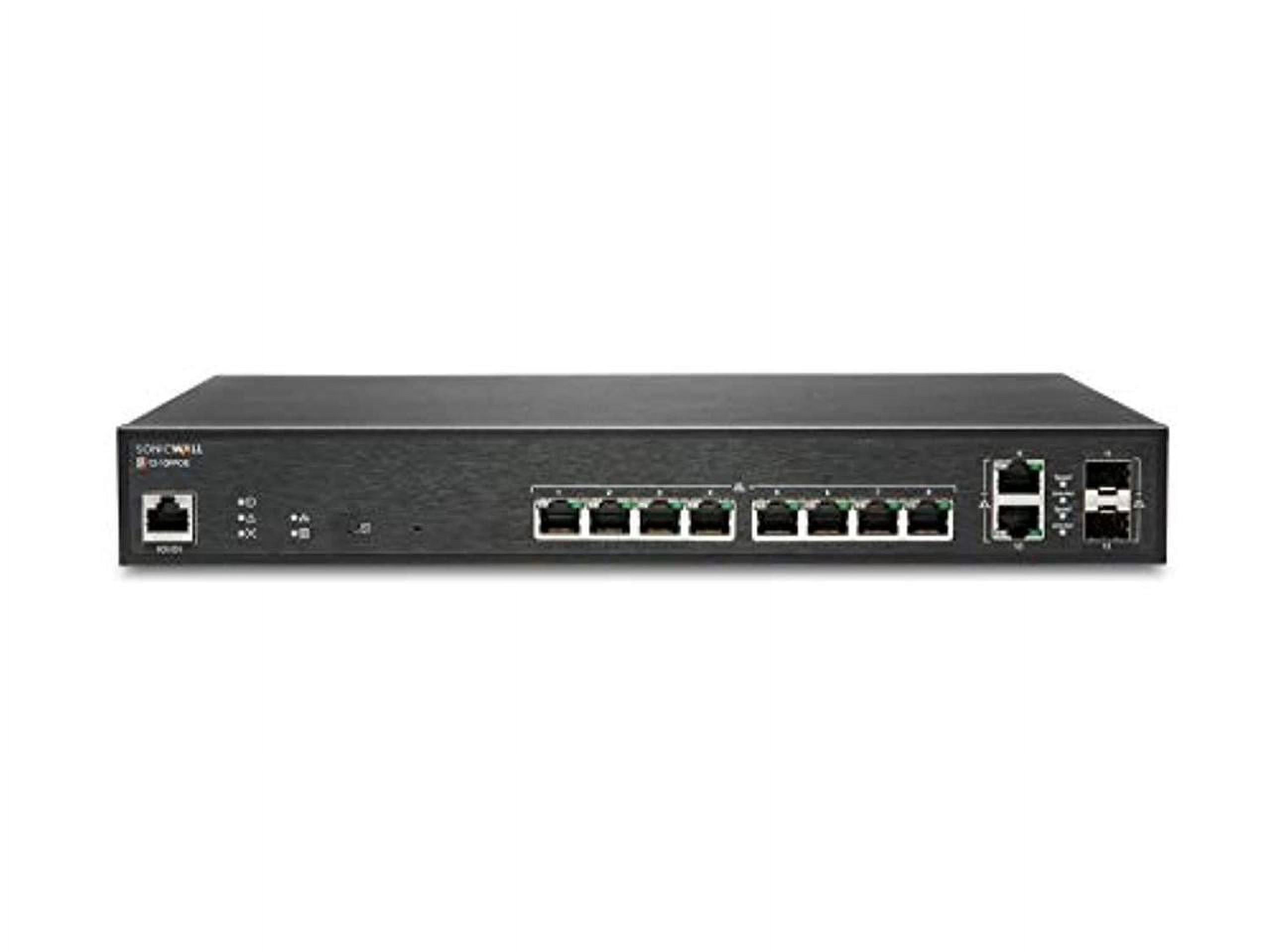

SonicWall 10 Port & 2 SFP Port Ethernet Switch 3yr Dynamic Support 02SSC8371

<b><u>Technical Information</u><br></b><br><b>Features:</b> Zero-Touch Provisioning (ZTP), Quality of Service (QoS), Energy Efficient, Virtual LAN (VLAN), IGMP Snooping, DHCP Snooping, Access Control List, Flow Control<br><br><b><u>Interfaces/Ports</u><br></b><br><b>Total Number of Network Ports:</b> 10<br><b>Network (RJ-45):</b> Yes<br><b>Port/Expansion Slot Details:</b> 10 x Gigabit Ethernet PoE, 2 x Gigabit Ethernet Expansion Slot<br><br><b><u>Media &amp; Performance</u><br></b><br><b>Media Type Supported:</b> Optical Fiber, Twisted Pair<br><b>Ethernet Technology:</b> Gigabit Ethernet<br><b>Network Technology:</b> 1000Base-T, 1000Base-X<br><b>Maximum Data Transfer Rate:</b> 128 MB/s<br><br><b><u>I/O Expansions</u><br></b><br><b>Total Number of Expansion Slots:</b> 2<br><b>Expansion Slot Type:</b> SFP<br><b>Number of SFP Slots:</b> 2<br><br><b><u>Network &amp; Communication</u><br></b><br><b>Layer Supported:</b> 2<br><b>Networking Standards:</b> IEEE 802.1x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at<br><br><b><u>Management &amp; Protocols</u><br></b><br><b>Manageable:</b> Yes<br><br><b><u>Reliability</u><br></b><br><b>MTBF:</b> 180837 Hour<br><br><b><u>Power Description</u><br></b><br><b>PoE (RJ-45) Port:</b> Yes<br><b>PoE Budget:</b> 130 W<br><b>Input Voltage:</b> 120 V AC, 230 V AC<br><b>Frequency:</b> 50 Hz, 60 Hz<br><b>Power Source:</b> AC<br><b>Power Consumption:</b> 152.80 W<br><br><b><u>Physical Characteristics</u><br></b><br><b>Form Factor:</b> Desktop, Compact<br><b>Height:</b> 1.7"<br><b>Width:</b> 13"<br><b>Depth:</b> 9.1"<br><b>Weight (Approximate):</b> 5.51 lb<br><br><b><u>Miscellaneous</u><br></b><br><b>Application/Usage:</b> Network, Small Business, Medium Business, IP Camera, VoIP Phone, Wireless Access Point, Camera, Printer, IoT Devices<br><b>Additional Information:</b> <li>Memory (MB): 256</li> <li>Flash (MB): 32</li> <li>Packet Buf.: 512K</li> <li>Mac Table: 8K</li> <li>Switching (Gbps): 24</li> <li>Fan: 1</li> <li>Power Supply: 180W Fixed</li> <li>Power Source: 100-240VAC 50-60Hz</li> <li>Current: 2.5A</li> <li>Heat Dissipation (BTU): 521.1</li> <li>Min Power Cord Amperage: 10 Amp</li> <li>Operating Temperature: 0 - 40?C</li> <li>Storage Temperature: -40 - 70?C</li> <li>Humidity: 10-95% R.H</li> <li>RJ-45 Serial Console Port: 1</li> <li>MTBF @25?C in Years: 20</li> <li>Switching Capacity (Duplex) in Gbps: 24</li> <li>VLANs: 4096</li> <li>Regulatory Model: 1RK43-0E3</li><br><b>Certifications &amp; Standards:</b> <ul><li>FCC Class A</li><li>ICES Class A</li><li>CE (EMC Class A, LVD)</li><li>C-Tick</li><li>VCCI Class A</li><li>UL cUL</li><li>TUV/GS</li><li>CB</li><li>Mexico UL DGN notification</li><li>BSMI</li><li>KCC/MSIP</li><li>ANATEL</li></ul><br><b>Environmental Compliance:</b> Waste Electrical and Electronic Equipment Directive (WEEE), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS)

• Layer 2 PoE Switch
• Gigabit Ethernet Ports: 10
• SFP Ports: 2
• Zero-Touch Deployment: Set up, configure and deploy devices quickly.
• SD-Branch ready: Integrates seamlessly to your SonicWall ecosystem.
