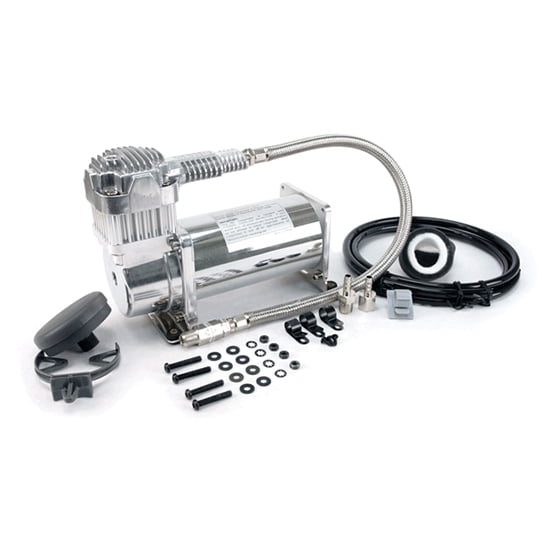

Viair 38033 Single Air Suspension Compressor Kit, 380C, Chrome
Product details
| Management number | 230374914 | Release Date | 2026/06/18 | List Price | $133.33 | Model Number | 230374914 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
380C is a truly-rated continuous duty, 12-volt, 200 PSI compressor. It is capable of filling a 5.0-gallon tank from 165 PSI to 200 PSI in 3 1/2 minutes consistently, while never pulling more than 23 amps of power (@ 13.8 volts). Features include a standard 1/4” stainless steel braided leader hose with 1/4” NPT inline check valve and insulated wiring. 12-Volt. Permanent Magnetic Motor. Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI) Max. Working Pressure: 200 PSI. Max. Air Tank Size: 5.0 Gallon. Max. 12V Amp Draw: 23-Amps. Ingress Protection Rating: IP67. Dimensions: 9?L x 4?W x 6.75?H. Net Weight: 8.75 lbs. Features Thermal Overload Protector. Check Valve. Vibration Isolators. Mounting Hardware. Stainless Steel Braided Leader Hose. Air Line for Remote Mount Air Filter. Remote Mount Air Filter Assembly. (2) Replacement Air Filter Elements. Installation Instructions. Kit includes: (1) 380C Chrome Compressor. Intercooler Head. (2) Air Filter Assemblies. (1) Remote Mount Brackets. (1) Sets of Remote Mount Fittings. (1) Sets of Spare Air Filter Elements. (4) Sets of Nuts, Bolts, Washers and Lock Washers. (1) Stainless Steel Braided Leader Hoses with Inline Check Valve. (3) Airline Clips with Included Hardware. Installation instructions. Recommended Components: 12V relay # 910-64044. Pressure switch 200 psi # 910-901031. 3 Gallon tank # 910-9913. 5 Gallon tank # 910-9914. Fill Rates: 2.5 Gallon Air Tank: 0 to 145 PSI - 3 min. 30 sec. 110 to 145 PSI - 1 min. 10 sec. 0 to 200 PS - 6 min. 05 sec. 165 to 200 - 1 min. 45 sec. 5 Gallon Air Tank: 0 to 145 PSI - 7 min. 20 sec. 110 to 145 PSI - 2 min. 25 sec. 0 to 200 PSI - 13 min. 25 sec. 165 to 200 PSI - 3 min. 39 sec.
- 12V ,Permanent Magnetic Motor
- Stainless Steel Braided Leader Hose included
- Package Weight: 9.744 pounds
- Package Dimensions: 29.8 L x 23.0 H x 17.4 W (centimeters)
| Cfm | 1.3 |
|---|---|
| Volume capacity | 5 gal |
| Horsepower | 0.13 HP |
| Maximum psi | 200 psi |
| Power type | Manual |
| Number of stages | 1-Stage |
| Brand | VIAIR |
| Features | Adjustable |
| Volts | 12 V |
| Amps | 23 Amps |
| Accessories | Air compressor |
| Material | Stainless Steel |
| Weight | 10 lb |
| Has written warranty | No |
| Color | Silver |
| Model | 38033 |

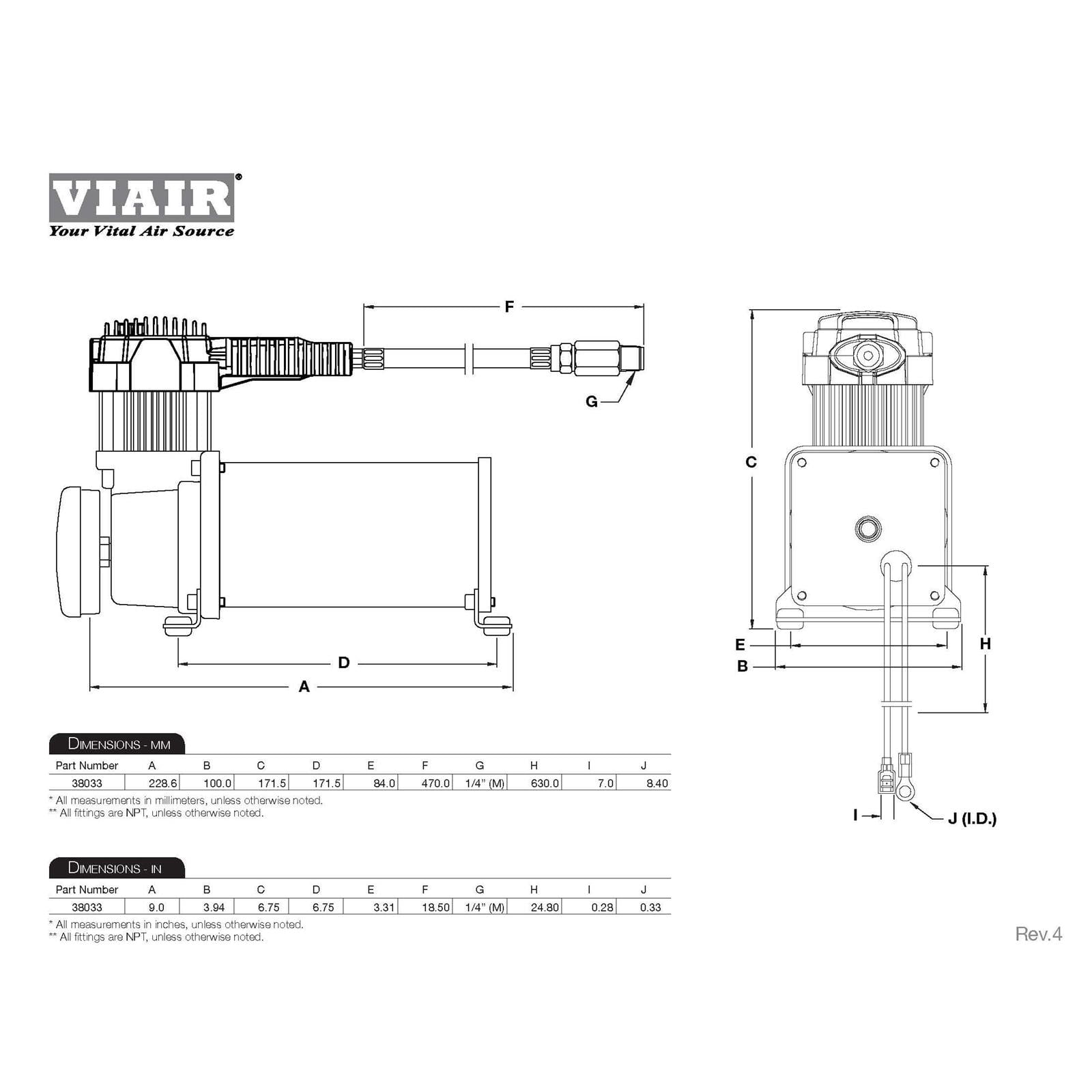

| Assembled product dimensions (l x w x h) | 12.00 x 9.00 x 6.75 in |
